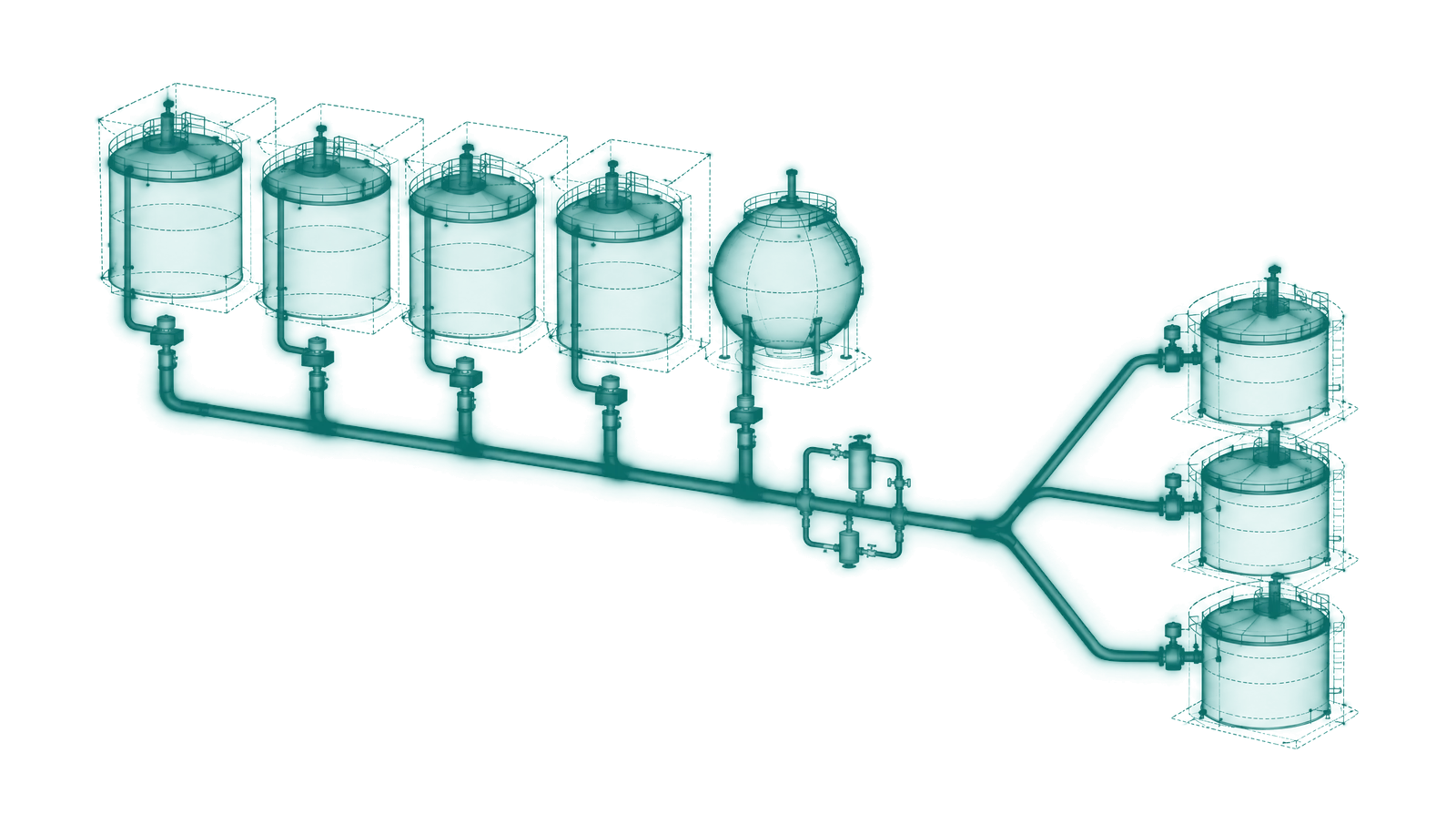

Every barrel of gasoline that leaves the blend header above its minimum specification carries value the refinery has already paid to produce and will not recover. Hydrocarbon Processing has put average U.S. octane giveaway at around 0.5 octane numbers and average RVP giveaway near 0.3 psi. Refinery operations make yield in the individual process units, but margin is realized at the blend header, where finished product meets specification with or without an unnecessary buffer.
That gap between target and actual blend quality is giveaway. At most refineries it is one of the largest pools of unrecovered margin, and it sits in plain sight. Linear programming (LP) models approximate nonlinear blending behavior, and lab results arrive hours after the blend is made. Operators respond rationally to that uncertainty by widening quality buffers. Together these conditions create a persistent margin leak that better LP tuning alone does not close.
In brief
- LP models can miss nonlinear octane and RVP interactions between blend components.
- Lab delay and analyzer uncertainty push operators to hold extra octane and volatility margin.
- Seasonal RVP limits and Tier 3 sulfur treatment can force greater use of expensive blendstocks.
- FCC, reformer and alkylation targets set how much blend flexibility exists before allocation begins.
- Planning assumptions often diverge from actual tank inventories and current blend header properties.
- Each component allocation changes what remains available for other grades and later blends.
Where giveaway originates in the blend pool
Nonlinear blending in a linear model
Giveaway starts with the way refineries model the blend. Octane blending is nonlinear, but LP models typically rely on linear blending indices or empirical corrections that do not fully capture interaction effects among components, including composition effects such as olefin content. A refinery targeting 87-octane regular gasoline may produce 88-octane product and sell it at the 87-octane price.
Delayed and uncertain feedback
Delay compounds the modeling error. Lab sampling cycles put hours between blend execution and quality confirmation. Online analyzers narrow that gap but bring calibration drift and their own uncertainty. When component properties shift between samples, quality systems struggle to close the feedback loop in real time.
Operator buffers
Operators respond to that uncertainty in the practical way available to them. They widen quality buffers to protect specification compliance, because running tight to spec risks an off-spec batch and a costly reblend. Holding extra octane or RVP margin rarely shows up as an incident, but it still erodes blend economics.
Seasonal and regulatory pressure
RVP giveaway follows the same pattern. A refinery that leaves butane blending below its seasonal maximum accepts avoidable cost. Hydrotreating to meet EPA Tier 3 sulfur limits also costs octane, which pushes the pool toward costlier components such as alkylate and reformate. Yield work that stops at the process units misses the point where this loss becomes real, at the blend header.
How upstream decisions shape the component pool
Upstream unit decisions determine which blendstocks are available, and at what quality, before allocation begins. They set the pool's flexibility long before the blender touches a recipe.
- FCC operation sets the octane and olefin content of FCC gasoline.
- Reformer severity sets both the octane contribution and the benzene content of reformate.
- Alkylation throughput governs the supply of one of the most versatile blendstocks in the pool.
- Hydrocracker yield decisions affect both the diesel and gasoline pools through naphtha cut points.
When any of these units runs at a different configuration than the LP assumed, recipes derived from the refinery plan become infeasible or suboptimal in execution.
Planning, scheduling and the console
The disconnect also follows the way the work is divided. Planning sets monthly targets using simplified unit models and forward pricing. Scheduling turns those targets into blend recipes on the LP assumption that all components are available at any point within the planning period. At the console, operators execute against component allocations that may not reflect actual tank inventories or current properties.
Each function optimizes within its own scope. Coordination suffers because no single model connects upstream operations to blend header outcomes in real time.
What a learned model changes about component allocation
Giveaway forms in the interaction between nonlinear blend behavior, delayed feedback and component constraints shared across grades. A model built from the plant's own operating data, instead of idealized blending equations, captures the component interactions that linear formulations miss. Most refineries already hold the necessary inputs in their historian, although historian data quality often needs attention before a model can learn reliably from past operations.
Closing the feedback loop
Online analyzers using NIR or Raman spectroscopy reduce the delay between lab result and decision, but they still face calibration drift and limited coverage across all blend properties. A learned model complements the analyzer investment. It predicts blend quality in real time from component inputs and draws on analyzer signals as they arrive. That reduces one of the main sources of uncertainty behind conservative operation. How much value it recovers depends heavily on the baseline analyzer infrastructure and on operator engagement.
Allocating across the whole pool
Component allocation then becomes a pool-wide problem instead of a single-blend calculation. Sending alkylate to the 93-octane pool also changes what remains for regular and mid-grade production. Single-blend tools do not evaluate these interactions well.
A pool-wide optimizer evaluates component allocation across grades and time periods together, so it reduces giveaway for the pool as a whole. It works alongside the existing systems. Advanced process control (APC) continues to manage unit dynamics, LP planning continues to set monthly targets, and the model connects them by capturing the nonlinear behavior neither tool was designed to represent.
Where blender judgment still matters
A model does not substitute for the judgment a veteran blender brings to an unusual crude slate. It does work through the combinations of components, grades and specifications at a typical refinery faster than any manual evaluation, and that surfaces allocations people would not reach within scheduling timeframes.
From advisory recommendations to closed-loop blending
Refineries that recover margin from giveaway tend to follow the same pattern. Trust grows step by step before the system gains authority over blend recipes.
Advisory mode
In advisory mode, the model recommends component allocations and target properties while operators keep full decision authority. Recommendations sit alongside operator judgment, and the differences become learning in both directions. Operators see allocation strategies they had not considered, and newer operators get a clearer view of how experienced blenders weigh trade-offs under uncertainty. The decision-making process becomes shared, with the model surfacing options and operators judging which fit current plant conditions.
The same model supports what-if analysis when the crude slate changes, scenario planning for seasonal RVP transitions, and offline operator training built from the plant's own blend history instead of a generic simulator. It can also refresh LP planning vectors more often from real operating data, which narrows the gap between the monthly plan and what the units deliver.
Building trust through transparency
Operators need to understand the model's reasoning before they trust it with their unit. The implementations that work bring operators into calibration and validation from the start, instead of asking them to review a finished system.
As confidence builds, plants move into operator-approved execution, where operators validate recommendations within defined boundaries before those recommendations become setpoints. The progression is gradual. Some properties and grades may stay in advisory mode while others move to operator-approved operation, and some reach the stage where the model writes blend setpoints directly to the control system. Operators keep override authority throughout.
Connecting blend optimization to upstream APC
Linking the blend optimizer to upstream APC closes a loop that siloed tools have historically left open. When upstream process changes reach blend allocation decisions immediately, the planning-to-operations gap behind much of today's giveaway starts to close. Closed-loop control is where that progression leads.
Frequently asked questions
How do tank inventory swings affect gasoline component allocation?
They can turn a recipe that looks optimal in planning into one that is constrained in execution. Planning and scheduling may assume components are available across a period, while operators work with current tank levels and current properties at the blend header. That gap forces last-minute changes that raise giveaway risk. Connecting unit-level operations to real tank inventories lets a blend optimizer respond before a recipe becomes infeasible.
What does advisory mode look like for a gasoline blending team?
The model recommends component allocations and target properties while operators keep decision authority at the console. That creates a side-by-side comparison between model logic and blender judgment. Experienced operators can test recommendations without giving up control, and newer operators see how trade-offs are weighed. Effective human-AI collaboration in blending depends on this transparency, particularly during crude slate changes, when the model's reasoning needs to be visible to the team.
How does a shared optimization model improve planning and scheduling handoffs?
It reduces the mismatch between monthly targets, scheduled recipes and what operators can execute in real time. Without a shared view, planning, scheduling and operations work from different assumptions about inventories, unit conditions and component availability. A shared model connects upstream operating changes to blend outcomes faster, so planning, scheduling and operations optimize against the same picture of the system.
How the Imubit Platform applies
Imubit applies Map, Model and Control to gasoline blending as part of its work in refining. Map traces octane and RVP giveaway to the recurring decisions behind it, from FCC, reformer and alkylation targets upstream to component allocation at the header. Model uses Deep Learning Process Control® (DLPC®) to learn the nonlinear blending behavior from the plant's own history. Control takes those decisions to closed loop, writing blend setpoints through the existing APC and DCS, inside limits set by plant engineers.
