Every process plant lives with fouling. Heat exchangers that started the run transferring heat efficiently are now doing less with more: higher furnace firing rates, wider temperature approaches and tighter throughput limits. Because industrial energy efficiency depends so heavily on heat recovery networks, the effect of fouling reaches well beyond the exchangers themselves.
Most plants undercount their own exposure. The International Energy Agency puts industry at nearly 40% of global energy consumption, and process heat makes up the largest share of that demand. At that scale, even modest heat transfer degradation adds up to a large energy penalty. The cost spreads across energy, maintenance, throughput and margin, in budgets that different teams own separately.
The result is a constraint that everyone recognizes and few organizations manage as the system-level problem it is.
In brief
- Reduced heat transfer shifts duty to fired equipment, so the penalty lands in the energy budget rather than in any fouling line item.
- Cleaning does not always restore true clean performance.
- Throughput limits and a narrower operating window often make up the largest hidden loss.
- Calendar-based cleaning assumes uniform fouling rates that rarely match actual conditions.
- Continuous performance tracking from existing historian data reveals network-level losses that single-exchanger monitoring misses.
Why fouling costs more than maintenance budgets capture
Most plants account for fouling as a maintenance cost. The actual penalty is broader, and it goes undermanaged for an organizational reason: the costs sit in budgets that different teams own, so no single function sees the full picture.
Energy
The most visible cost is energy. Reduced heat transfer forces fired heaters to compensate, and that penalty shows up in the energy budget, not the fouling budget. Where furnace efficiency is already a major operating expense, extra furnace duty from fouled exchangers compounds the problem quickly.
Cleaning that falls short
Cleaning costs sit in the maintenance budget. Cleaning does not always return equipment to a true clean condition, so plants can carry forward a gap between assumed and actual performance that widens over several cycles. The gap grows fastest when the cleaning method does not address the dominant fouling mechanism in that service.
Throughput and operating flexibility
The costs that rarely get attributed to fouling often matter most. Throughput losses appear when fouling constrains downstream equipment. In one documented case, exchanger fouling and downstream pressure drop together limited throughput in a way neither factor would have caused alone. That kind of compound constraint is familiar in debottlenecking, where the binding limit moves with operating conditions.
Plants also compensate by narrowing their operating window and avoiding feed blends that accelerate fouling. Throughput decisions driven by those conservative strategies often go unrecognized, because the opportunity cost rarely appears in any fouling cost accounting. The plant is paying to clean equipment, and it is also paying for the operating choices made to postpone or manage the problem.
When fouling mechanisms compound across the network
Fouling rarely behaves as a single, isolated mechanism. In most process streams several deposit processes are active at the same time, and each can make the others worse.
- Initial deposits roughen the surface and give later deposits more places to anchor.
- Biofilms in cooling water systems capture particles and concentrate dissolved minerals.
- Reduced flow area from any mechanism lowers local velocity, which accelerates deposition elsewhere in the exchanger.
That is what makes fouling a system problem as well as an equipment problem. Different positions in a heat exchanger network see different dominant mechanisms. The penalty also changes with position, because exchangers differ in duty, flexibility and downstream consequence.
How mechanisms interact across services
In process heating services, chemical reaction fouling can dominate at high surface temperatures. In cooling systems, biological fouling can set up the conditions for scaling and corrosion product deposition. The same dynamic applies to a preheat train in a refinery, a reboiler circuit in a chemical plant and cooling water systems at a metals facility: initial deposits change the local environment in ways that speed up later fouling.
For operations, mitigation aimed at one mechanism while ignoring the others will usually underperform. Effective fouling management rests on network-level monitoring that accounts for how mechanisms interact at different positions, and how those interactions change with operating conditions.
Why calendar-based cleaning leaves value behind
Schedule-based maintenance assumes fouling progresses at a predictable, uniform rate. In practice, fouling rates vary with feed quality, operating temperature, flow distribution and upstream process upsets. Rates can shift sharply within a single run, sometimes doubling after a feed change or an upset that alters the heat transfer surface.
The alternative is continuous performance monitoring with data already held in the plant historian. Duty calculated from flow and temperature measurements, divided by exchanger area and the log-mean temperature difference (corrected for the flow arrangement), gives the current overall heat transfer coefficient (U). Tracking U against a clean baseline, or as a fouling resistance (the difference between 1/U now and 1/U clean), reveals performance loss earlier than a calendar does. Pressure drop provides another useful signal with simpler computational requirements.
From single-exchanger to network-level monitoring

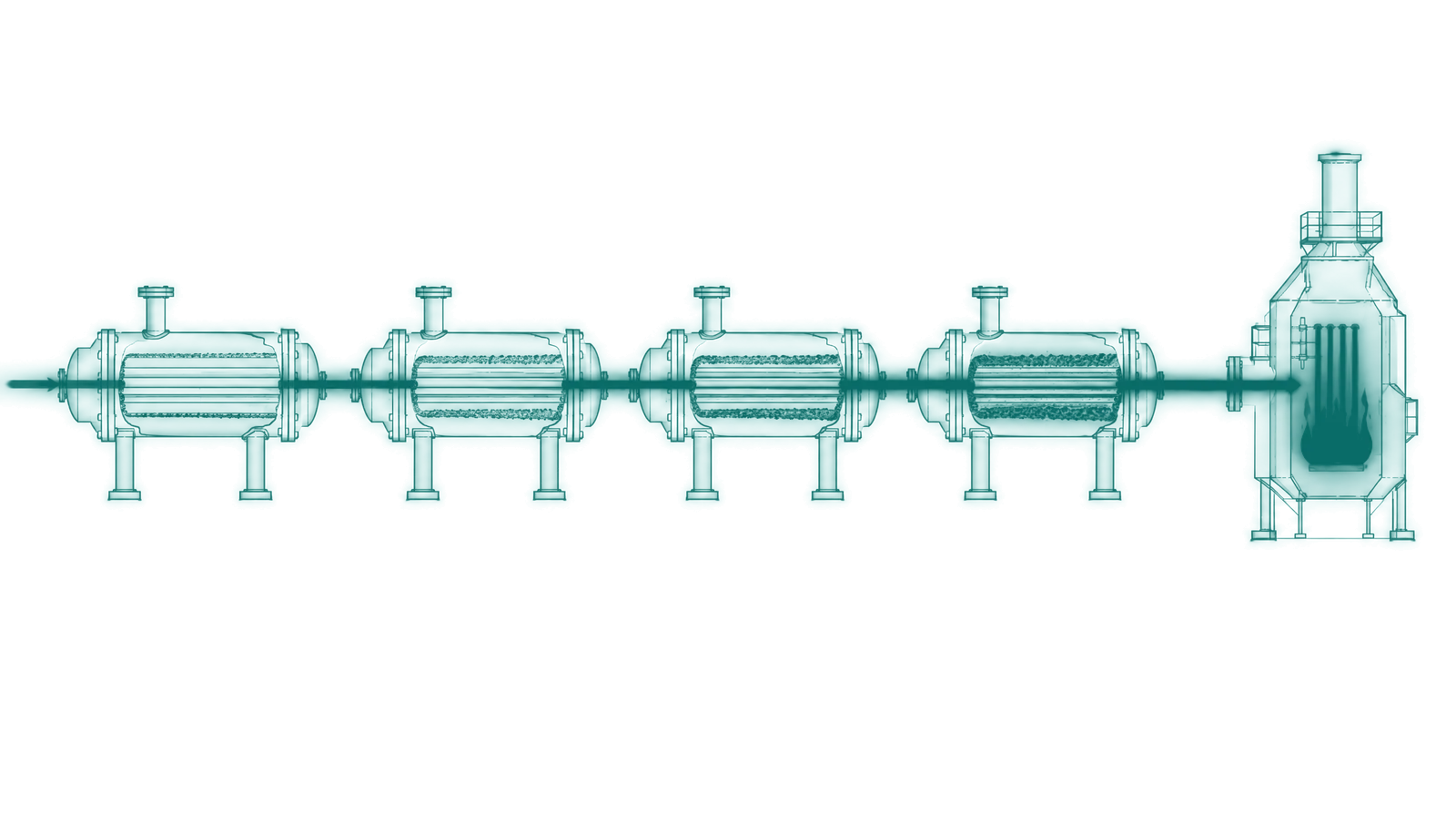

Single-exchanger monitoring still leaves a gap at the network level. Simulations of exchanger networks show that fouling concentrated in specific units can have different operational impact than uniform fouling assumptions predict. The units carrying the most duty, or sitting at the tightest constraint boundaries, tend to impose the largest plant-level penalty when their performance drops.
Monitoring individual exchangers without understanding network interactions can lead to poor cleaning decisions. A fouled exchanger near the cold end of a preheat train, for instance, may impose a smaller energy penalty than one closer to the furnace, even if its fouling rate is higher. The programs that deliver the most value combine continuous performance monitoring with feed quality tracking, because changes in feed composition are often the strongest predictor of where fouling will accelerate next.
One documented crude unit program, described in the 2017 AFPM Operations and Process Technology Summit daily published by Hydrocarbon Processing, measured crude blends in the tank farm to predict compatibility and fouling potential, then used those results to set the compatibility aids and the antifoulant and crude stabilizer treatment. The refinery had been cleaning preheat bundles during the run. Under the new protocol, no bundles needed cleaning between turnarounds, with combined energy, maintenance and throughput savings.
Where a learned model changes the decisions
Traditional fouling management focuses on when to clean and which chemical to apply. A model learned from plant data changes the frame by connecting fouling behavior to the process conditions that drive it: the interactions between temperature, flow velocity, feed composition and upstream process states that are hard for any one person to track at once.
Trained on historical plant data, the model can identify operating conditions associated with faster fouling and adjust setpoints to manage fouling rate alongside throughput and energy targets. No model captures every edge case an experienced operator would recognize, so operator validation remains essential. What the model adds is consistent attention to the whole exchanger network on every shift, and a basis for human-AI collaboration across it.
Shared models across operations, maintenance and planning
The cross-functional effect is where the value compounds. When operations, maintenance and planning share a common fouling model, cleaning is scheduled on measured deterioration rather than inherited assumptions. Planning can see the fouling result of a feed decision before committing to it, rather than discovering the penalty afterward. Operations can adjust setpoints to extend run length, based on how current conditions track against historical fouling trajectories.
That shared view replaces the siloed decisions that hide the full cost of fouling. Fouling moves from a periodic maintenance event to an operating variable that is managed continuously.
Building trust from advisory to closed loop
Plants that start in advisory mode build that shared understanding before any automatic control action. The model recommends and operators decide. As trust builds, teams move into operator-approved operation and then to closed loop where it fits their goals.
Experienced operators check recommendations against what they know about the unit, and newer operators get structured exposure to the optimization thinking veteran engineers carry. Model accuracy becomes visible before operational authority changes hands. That matters in fouling management, because operators live with the consequences of bad setpoints, poor cleaning timing and avoidable throughput constraints.
The value of managing fouling this way reaches beyond energy. Fewer maintenance events, protected throughput and a wider range of feeds the plant can process all add to margin, and feed and cleaning decisions rest on actual exchanger condition rather than conservative assumptions carried over from the last turnaround.
Frequently asked questions
How can plants move from calendar-based to condition-based fouling monitoring?
Plants need continuous temperature, pressure and flow measurements to compare current exchanger performance against clean baselines. Most facilities already collect this information in their historians, so the shift is usually analytical rather than a matter of new instruments. Consistent data quality and a systematic way to track the overall heat transfer coefficient over time matter most, so that cleaning decisions reflect measured need rather than assumptions.
How does fouling in one exchanger affect the rest of a process network?
Fouling in one exchanger redistributes thermal and hydraulic loads across the network. A fouled unit forces adjacent exchangers to absorb more duty, while lower process temperatures can raise fired heater demand and eventually begin to limit output. That is why single-equipment monitoring often misses the full operating effect. Network-level visibility, the kind that supports plant reliability programs, lets plants identify which units create the largest downstream penalty before throughput is affected.
Can fouling optimization work with existing plant instrumentation?
In many plants, the needed temperature, pressure and flow measurements are already in place. The main requirement is reliable data that can be used to calculate heat transfer performance continuously and to connect exchanger behavior to operating conditions. The model works with the existing control systems and historians, so new sensors are often not needed.
